RBC-BETOBAR LV
busbars with cast insulation

One of the areas of business of «Russian Busbar Center» is to supply cast resin bus ducts based on epoxy compound.

Catalog of
RBC-BETOBAR LV busbars

Features of RBC-BETOBAR LV busbars with cast insulation

Reliability

High mechanical strength
Excellent chemical resistance
High degree of protection up to IP68
Minimum heat generated, no additional cooling required

Safety

Zero potential on the surface of the current busbar
No danger of electric shock when touching under voltage

Cost-effectiveness

Low-maintenance current line
Possibility to change the route configuration after installation
Easy installation — no welding required

Calculating the cost of RBC-BETOBAR LV busbars

The cost depends on the following factors:

Route lengths

Technical parameters

Types of busbar sections

Order

Download the questionnaire

All this information is obtained by our specialists in the process of individual work with the customer. On the basis of all the received data, a technical and commercial offer is formed.We suggest that you fill out the questionnaire and send it to us by email:
info@rbc-energo.ru

Busbar construction with cast insulation

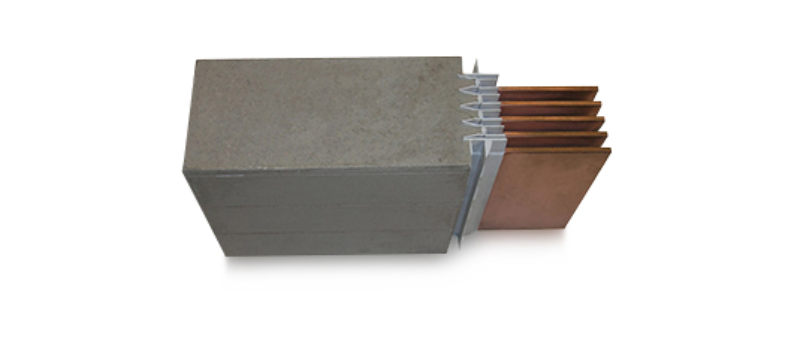

Figure-Straight section of the RBC-BETOBAR LV busbar

The design features of cast resin bus ducts ensure the maximum possible protective rating of IP68. This equipment is characterised by high mechanical stability and chemical durability to any external effects. Cast resin insulation based on epoxy compound is completely fire safe.

From the design viewpoint, a cast resin bus duct is a set of factory-fabricated standard sections (elements). They are connected to one another by means of special connecting modules with bolts; then the junction points are filled with compound. These products are small-sized, which makes their use extremely easy and convenient.

TECHNICAL CHARACTERISTICS OF THE RBC-BETOBAR LV BUSBAR

Параметры	Значения
Nominal voltage, kV	up to 1
Nominal current, A	up to 6300
External environment factors	up to IP68
Busbar material of current lines	Copper/Aluminum
Material of the current line case	Epoxy compound
